Tube Type Flow Meter LZS
Features of LZS-series tube type flow meter
LZS-series flow meter can be directly series connected into the pipeline and its water inlet and outlet are separately located at the upward and downward end of the flow meter whose shape can be round,square or other polygon(round shape is commonly used).The fitting screw thread could be male thread or female thread,the specification and material could be customized.
INTRODUCTION:
Technical parameters of LZS- series tube type flow meter
| Model | Measure Range | Screw Thread | Accuracy | |||
| Liquid | Gas | |||||
| tube type | GPM | LPM | Nm³/h | Male Thread | Female
Thread |
|
| LZS-0.6
LZS-1 LZS-1.5 LZS-2 LZS-2.4 LZS-5 |
0.1-0.6
0.1-1.0 0.1-1.5 0.2-2.0 0.2-2.4 0.5-5 |
0.5-2.5
0.5-4 0.5-5.5 1-8 1-9 1.8-18 |
0.8-8
1-10 1.6-16 2.5-25 4-40 |
G 1/2"
1/2"BSP |
G 1/2"
1/2"BSP |
±4% |
| LZS-5
LZS-10 |
1-5
2-10 |
5-18
4-40 |
6-60 | G 1-1/4"
1-1/4"BSP |
G 3/4"
3/4"BSP |
|
| LZS-20
LZS-30 LZS-40 LZS-60 |
4-20
5-30 5-40 20-60 |
20-70
20-110 5-150 80-225 |
10-1000
15-140 25-250 35-350 |
G 1-1/2"
1-1/2"BSP |
G 1"
1"BSP |
|
| LZS-80
LZS-100 LZS-120 LZS-150 LZS-200 |
20-80
20-100 20-120 50-150 60-200 |
100-300
100-350 100-450 200-560 200-800 |
100-500
300-800 400-1200 |
G 2"
2"BSP |
G 2"
2"BSP |
|
Structure Chart and Outline size of LZS Series Tube Type Flow Meter
| Model | Size(mm) | |||
| A | B | C | D | |
| LZS-(0.6-5) | 233 | 178 | Φ32 | 235 |
| LZS-(5-10) | 283.5 | 236.5 | Φ45 | 330 |
| LZS-(20-60) | 297 | 233.5 | Φ51 | 318 |
| LZS-(80-200) | 367 | 296 | Φ75 | 400 |

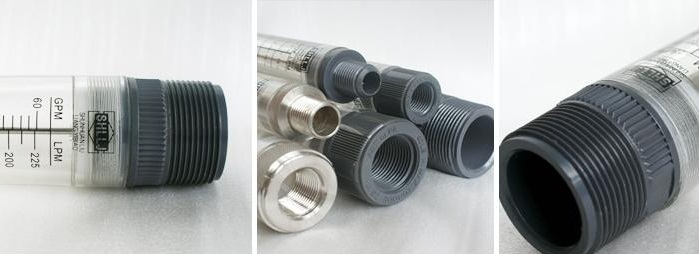

Material & Code of the parts of LZS Series Tube Type Flow Meter
| Fitting | Float | O-Ring |
| ABS
PP PVC Brass Brass Chromeplate SS |
SS
Acrylic Agate Ball PTFE |
Silicon Rubber
Fluorin Rubber |
Remark: Working Pressure:≤1MPa
Operating Temperature:0~65 C
Customized specifications are available
